Public Safety. Urban videosurveillance project.
With more than 350,000 citizens and located 375 kilometers from South Cairo, Asyut is the largest city in Upper Egypt.
The Administration install a smart video surveillance system to control traffic on the main roads of the city, guaranteeing the citizens safety. This solution allows detecting and preventing any incident that may occur thanks to professional management tools that allow access in real time and to the recorded video collected by video surveillance cameras.
SOLUTION
More than a hundred of IP cameras (bullet, minidomes, PTZ domes, etc.) are installed at the critical points of the main roads.

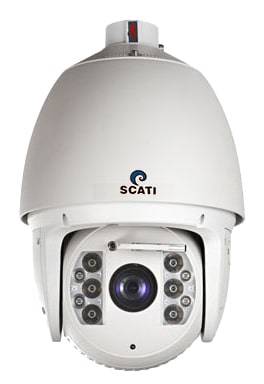

Among the more than 100 cameras, there are more than 30 high-speed PTZ Dome IP cameras capable of collecting images with high resolution (up to 2 Mpx), with a 32x optical zoom and at a distance of up to 150 meters, stands out thanks to its long-range IR (infrared). The SID-35115NR-EXY32 model incorporates WDR (Wide Dynamic Range) feature to provide images with the best quality under deep lighting contrasts on the scene, without losing any detail of the image and solving in real time any incident that may arise.
With a built-in 1/2.8’’ Sony Progressive Scan CMOS sensor, these cameras offer an excellent performance in low-light environments thanks to their highly sensitive sensor. They are able to switch to day / night mode automatically thanks to their mechanical IR filter, supported by their infrared light.

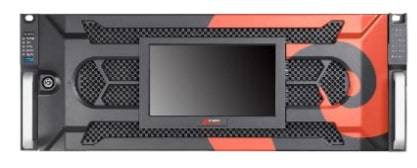

Up to 64 IP cameras and up to 48 TB storage, two SCATI FENIX IP platforms guarantee 24/7 centralized recording at maximum image resolution, compatible with standard compression formats (H.265/H.264/MPEG4)
The centralized management of all cameras is done through the SCATI FENIX CMS (Central Management System) server. Thanks to the scalability of the system, up to 512 cameras and 100 concurrent clients can be added without incurring additional costs.
The SCATI FENIX CMS has a redundant power supply and a redundant Giga Ethernet network interface (2 x RJ-45) and RAID capability.
BENEFITS
SCATI's video surveillance solutions, with high availability, reliability and stability, are capable of offering advanced intelligent monitoring tools to guarantee the safety of a city and respond quickly and efficiently to any incident.
SCATI CCTV systems offer a flexible and scalable solution adapted to the growth of urban environments, allowing the addition of more security devices at no additional cost as needs grow.
They allow integration with other systems for comprehensive security and also allow in-depth data storage, synthesis and analysis to aid in incident prevention and decision-making.
At the forefront of technology and with hundreds of references in Public Safety, SCATI designs and develops personalized projects adapted to the requirements of any municipality to increase the levels of security of the environment, public buildings, citizens and traffic control.
